🎨 Map Data Visualization

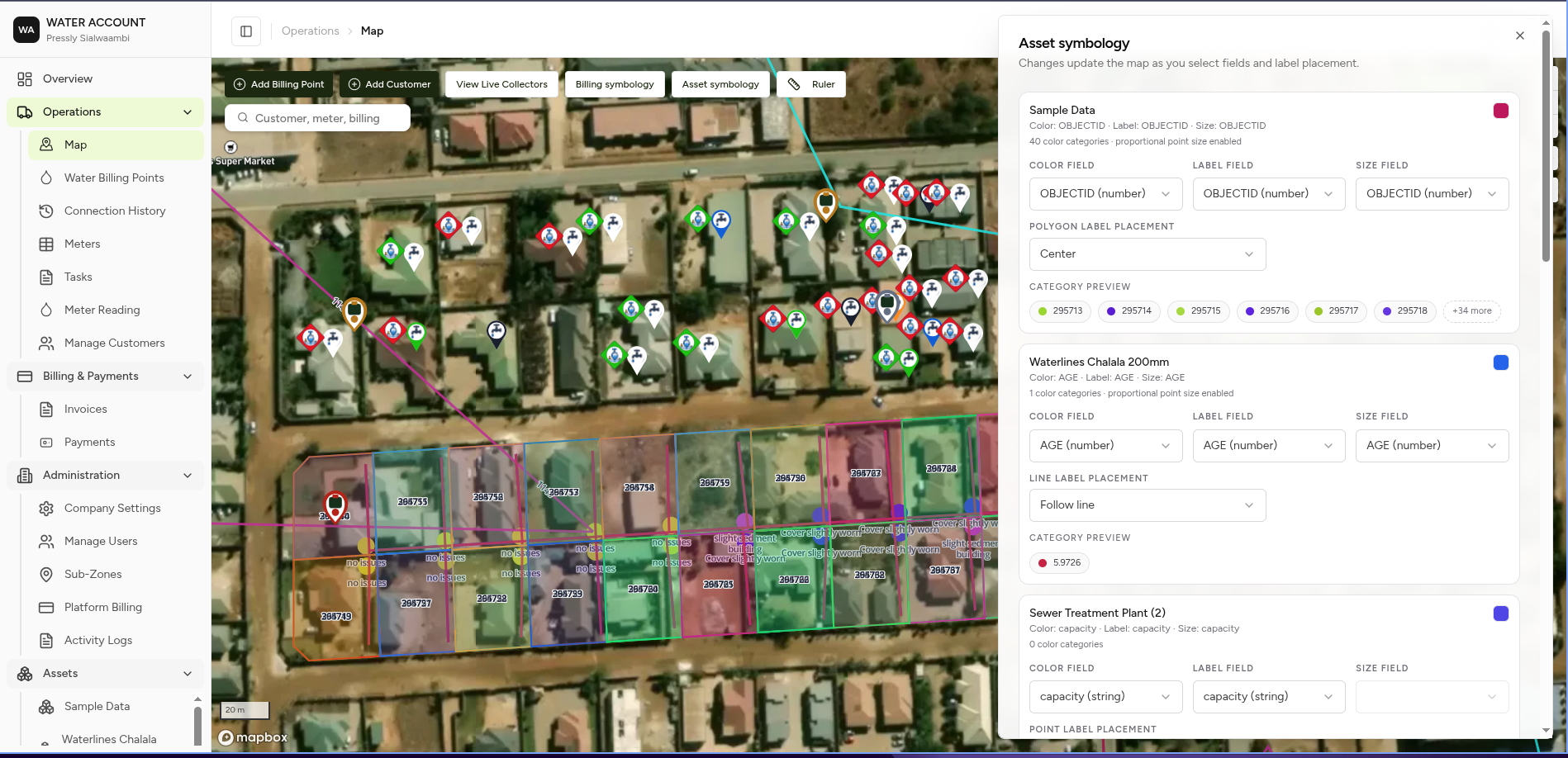

Assets on the map styled and previewed based on the selected visualization

The Data Visualization feature allows users to transform operational data into meaningful map views.

Instead of only displaying asset locations, MapBilling allows users to visualize assets based on their information and attributes.

Users can answer questions like:

  • Which areas have the most active meters?
  • Where are damaged assets located?
  • Which pipelines have the largest diameter?
  • Which customers have outstanding balances?

How Visualization Works

The visualization workflow starts from the map navigation.

Select Data Layer

        ↓

Open Visualize Panel

        ↓

Choose Visualization Method

        ↓

Select Attribute

        ↓

Apply Style

        ↓

Map Updates Automatically

Opening Visualization

Users can start visualization by selecting an asset type from the left navigation.

Example:

Assets

├── Meters
├── Pipes
├── Valves
└── Reservoirs

Select:

Meters

The visualization option becomes available.

Visualization Panel

Visualization panel showing each asset styled based on the selected attribute

A side panel opens containing visualization controls.

The panel allows users to configure:

  • Visualization method
  • Asset attribute
  • Map layers
  • Labels
  • Display options

Visualization Methods

MapBilling supports multiple visualization styles.

1. Categories

Categorize assets based on attribute values.

Useful for showing different groups.

Example:

Asset:

Meter

Attribute:

Status

Visualization:

🟢 Operational

🟡 Maintenance

🔴 Damaged

⚫ Inactive

Result:

Users can immediately identify asset conditions on the map.

2. Size

Change marker size based on a numeric value.

Useful for comparing quantities.

Example:

Asset:

Water Tanks

Attribute:

Capacity

Visualization:

Small Circle
=
1,000L

Medium Circle
=
10,000L

Large Circle
=
100,000L

Large assets become visually larger on the map.

3. Gradient

Use colour intensity to represent values.

Useful for continuous data.

Example:

Pipeline:

Diameter

Small
 ↓
Large

Map:

Light Colour
       ↓
Dark Colour

Example:

100mm  ───────── 500mm

Low             High

4. Labels

Display important information directly on the map.

Examples:

Meters:

MT-12345

Customers:

Jack Tembo

Pipelines:

150mm HDPE

Labels can be combined with other visualizations.

Example:

Large Red Circle

+

Label:
MT-12345

Combining Visualizations

Multiple visualization methods can work together.

Example:

Water Meter Analysis​

Category:

Status

↓

Colour:

Green = Active
Red = Damaged

Size:

Consumption Volume

Label:

Meter ID

Result:

     MT-12345
        🔴
      Large

Layer Management

The visualization panel also contains asset layers.

Users can control what appears on the map.

Example:

Map Layers

☑ Billing Points

☑ Meters

☑ Pipelines

☐ Valves

☐ Reservoirs

☐ Sensors

Users can:

  • Turn layers on.
  • Turn layers off.
  • Compare different datasets.
  • Focus on specific operations.

Example Use Cases

Find Damaged Infrastructure​

Layer:

Meters

Visualization:

Category

Attribute:
Condition

Result:

🔴 Damaged meters displayed

Identify High Consumption Areas​

Layer:

Billing Points

Visualization:

Gradient

Attribute:
Monthly Consumption

Result:

Low Usage

        ↓

High Usage

Pipeline Maintenance Planning​

Layer:

Pipelines

Visualization:

Size:
Diameter

Colour:
Condition

Label:
Pipe ID

Dynamic Asset Support

Visualization automatically works with uploaded assets.

Example:

Upload:

Reservoir Sensors

Attributes:

Battery Level
Temperature
Status

The system automatically allows:

Visualization

├── Categories
├── Size
├── Gradient
└── Labels

Expected Behaviour

The system should:

✅ Load available asset attributes.

✅ Allow users to select visualization methods.

✅ Update the map instantly.

✅ Maintain active layers.

✅ Support multiple asset categories.

✅ Work with dynamically uploaded assets.

Future Visualization Options

Future enhancements may include:

  • Heat maps
  • Clustering
  • Time-based animation
  • Historical comparisons
  • Predictive maintenance views
  • Service coverage analysis
